Advanced VoIP Technology
Aastra IP Phones
Aastra IP Phones
Aastra SIP phones are a family of modern and powerful SIP based products offering excellent inter-operability with both our Business and Enterprise Hosted platforms. They feature a sleek, modern design with wideband audio, an enhanced speakerphone. The various models feature several feature sets with increasing capability. Aastra phones are manufactured by MITEL, one of the largest telecommunications companies in the world.
Aastra 6865i Basic SIP Telephone
Basic SIP Telephone. Line Keys – 9 lines with 2 dedicated line keys with LED. Speaker Phone – Full-duplex quality speakerphone. Ethernet Connectivity – Dual GIGE 10/100/1000 Mbps Ethernet ports. Display Type – 3.4″ 128×48 pixel graphical backlit display. Contents – Aastra 6865i phone, Handset and coil cord, Adjustable 2-angle stand (35° & 60°). Supports wall mount kit and expansion modules (up to 3 per phone) purchased separately.
Aastra 6867i Fully Featured Executive/Receptionist SIP Telephone
Fully Featured Executive/Receptionist SIP Telephone. 9 lines with 2 dedicated line keys with LED. Speaker Phone – Full-duplex quality speakerphone. Ethernet Connectivity – Dual 10/100/1000 Mbps GIGE Ethernet ports. Display Type – 3.5″ QVGA 320×240 pixel color display. Contents – Aastra 6867i phone, Handset and coil cord, Adjustable 2-angle stand (35° & 60°). Supports wall mount kit and expansion modules (up to 3 per phone) purchased separately.
Aastra 6869i Premier Featured SIP Telephone
Premier featured SIP Telephone. Line Keys – 12 lines with 2 dedicated line keys with LED. Speaker Phone – Full-duplex quality speakerphone. Ethernet Connectivity – Dual 10/100/1000 Mbps GIGE Ethernet ports (LAN/PC). Display Type – 4.3″ 480×270 pixel color backlit LCD display. Contents – Aastra 6869i phone, Handset and coil cord, Adjustable 2-angle stand (35° & 60°). Supports wall mount kit and expansion modules (up to 3 per phone) purchased separately.
Aastra 6863i VoIP Telephone
Basic entry level SIP phone for low activity or auxiliary locations such as file room, hallways, reception areas, etc
Aastra M685i/68xx Color LCD Expansion
Display – 4.3. Line Keys – 28 keys with LED. Up to 3 expansions per phones. Compatible Phones – 6865i, 6867i and 6869i. Call Handling – Programmable keys support advanced features. Powered by the phone; no separate power adapter required.
Aastra 68xxi Wall Mounting Kit
All Aastra 6800i Series SIP phones can be wall-mounted safely and securely. The wallmount kit has a two piece slide and lock design and includes a short Ethernet cable making installation simple and efficient.
AC power supply for Aastra 68xx phones
Aastra AC Adapter The Aastra AC Adapter can be used for Aastra and Mitel model phones. This Aastra Power Supply is compatible for use with the 6700 series and 6800 series by Aastra.

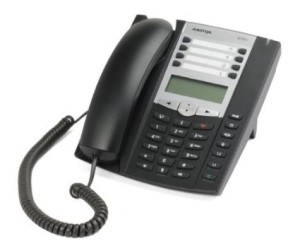

Aastra 6731i SIP Phone
Exceptional Value in an entry level, feature rich Phone.
The Aastra 6731i, a new member of the carrier-grade, open-standards based 67xi SIP portfolio, offers exceptional features and exibility in a enterprise grade IP telephone.
The Aastra 6731i, a new member of the carrier-grade, open-standards based 67xi SIP portfolio, oers exceptional features and flexibility in a enterprise grade IP telephone. With a sleek, elegant design and a compact footprint, this multi-line SIP telephone delivers the advanced features and performance traditionally found only in higher priced products. Featuring a 3 line LCD display, the 6731i supports up to 6 lines with call appearances, oers advanced XML capability to access custom applications and is fully interoperable with leading IP-PBX platforms. Supported by a host of Aastra conguration options, XML development tools and continuous product enhancements via software releases, the value oered by the 6731i makes it is ideally suited for daily telephone use for the small and large business market and enterprise applications.
XML Support The 6731i is equipped with XML browser capabilities allowing access to customized services and applications. Create internal service applications using development guides available from Aastra. This feature provides unlimited potential to customize the 6731i to meet your specific business needs or vertical and CTI applications using the display and keypad.
Features
- Enhanced Call Management With extensive storage capacity for personal directories, callers logs and redial lists, the Aastra 6731i can improve efficiency by providing more call information with the push of a button. Features such as shared call and bridged line appearances, call forward, call transfer, call waiting, intercom and local 3-way conference increase call flexibility and control.
- Remarkable Audio All 67xi Series IP Telephones offer full-duplex speakerphone for excellent voice clarity and delivery. With the addition of wide-band audio sound* and our over 15 years experience in telecommunications and telephone design, Aastra can ensure superior voice quality on every product we sell.
- Simplied Deployment From initial deployment and configuration to future enhancements and upgrades, the Aastra 6731i is designed to save your business time and money. Dual auto-sensing switched Ethernet ports eliminate additional wiring and simplify installations. Integrated IEEE 802.3af Power-over-Ethernet allows easy deployment with centralized powering and backup. Easily created configuration files, using any text editor and a variety of communication protocols, can be used to configure phones individually or centrally.
Aastra 6735i Gigabit IP Phone
Exceptional Features and Value in an Advanced Featured, Expandable IP Telephone. For use on high bandwidth networks. Permits the use of gigabyte devices through the built-in 2 port auto-sensing gigabyte Ethernet switch.
The 6735i from Aastra offers powerful features and flexibility in a standards based, carrier-grade advanced level expandable IP telephone. With a sleek and elegant design, 144 x 75 pixel backlit LCD display and 6 dynamic context-sensitive softkeys, the 6735i is fully interoperable with leading IP Telephony platforms, offering advanced XML capability to access custom applications and support for up to 9 calls simultaneously.
Part of the Aastra family of IP telephones, the 6735i is ideally suited for moderate to heavy telephone users who require more one touch feature keys and XML based programs.

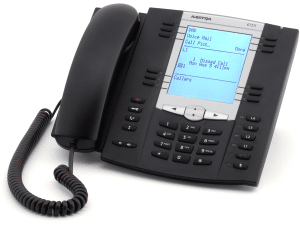

Aastra 6737i Gigabit IP Phone
Exceptional Features and Value in a Fully Featured, Expandable IP Telephone. For use on high bandwidth networks. Permits the use of gigabyte devices through the built-in 2 port auto-sensing gigabyte Ethernet switch.
The 6737i from Aastra offers powerful features and flexibility in a standards based, carrier-grade advanced level expandable IP telephone. With a sleek and elegant design, large 144 x 128 pixel graphical backlit LCD display and 6 dynamic context-sensitive softkeys, the 6737i is fully interoperable with leading IP Telephony platforms, offering advanced XML capability to access custom applications and support for up to 9 calls simultaneously. Part of the Aastra family of IP telephones, the 6737i is ideally suited for executives and heavy telephone users who require more one touch feature keys and a large screen to take full advantage of XML based programs.
Aastra 6739i Gigabyte IP Phone
The Aastra 6739i, our latest member of the carrier-grade, open-standards based 67xi SIP portfolio, brings leading edge communications technology to the desktop in a stylish global design. For use on high bandwidth networks. Permits the use of gigabyte devices through the built-in 2 port auto-sensing gigabyte Ethernet switch.
Powerful Features in an Advanced, Expandable Executive Level IP Telephone.
The Aastra 6739i, our latest member of the carrier-grade, open-standards based 67xi SIP portfolio, brings leading edge communications technology to the desktop in a stylish global design. Featuring a 5.7” full color high resolution VGA touch screen full duplex wideband audio speaker and handset, dedicated LED indicators, built-in bluetooth interface and a USB port. The 6739i also is equipped with multiple headset connection options, support for up to nine lines with call appearances, dual Gigabit Ethernet Interfaces and extensive call management capabilities.
Features
- The high resolution (640 x 480) full VGA backlit LCD Touch Screen display is at the heart of the Aastra 6739i. A state of the art display, the screen provides helpful navigational menus to take full advantage of the powerful telephony features this SIP phone brings to the desktop. Adjustable brightness settings can be used to ensure maximum resolution quality in any lighting environment.
- All 67xi Series IP Telephones incorporate Aastra Hi-Q™ audio technology to deliver enhanced performance and voice clarity. Integrating wideband audio software and hardware, the Aastra 6739i goes one-step beyond maximizing the acoustic performance to deliver a remarkable audio experience on every call, whether using the handset, hands-free speakerphone or headset port.
- Providing enhanced headset flexibility, the 6739i allows for a variety of headset options. Featuring a built-in Bluetooth interface and a dedicated EHS (DHSG) port, the 6739i facilitates mobility around the office while enjoying remarkable audio quality on your wireless headset.
- From initial deployment and configuration to future enhancements and upgrades, the Aastra 6739i is designed to save your business time and money. Dual auto-sensing switched Gigabit Ethernet ports eliminate additional wiring and simplify installations without compromising the bandwidth required by power users. Integrated IEEE 802.3af Power-over-Ethernet allows easy deployment with centralized powering and backup.
Aastra M675i Expansion Module
Aastra 67xi Series Expansion Modules Offer increased Call Control.
The M675i expansion module is designed to increase the power and flexibility of the 67xi Series SIP telephones. Up to three modules can be used with the 6757i or 6757i CT telephone to create a powerful, feature rich console option. The M675i shares power and signaling with the phone, eliminating the need for additional wiring. Designed for receptionists, administrative assistants, call center agents, power users, and executives who need to monitor and manage a large volume of calls on a regular basis, the 67xi Series Expansion Modules provide an intelligent choice for all Enterprise IP environments.
Aastra High Angle Stand For Aastra 6700 Series Phones
Optional High Angle Stand accessory for the 6700i series of SIP phones that increases the viewing angle of the phone up to a maximum of 60 degrees. This stand has been designed to address the needs of those users who prefer to have the phone at a higher incline as a way to enhance the position of the display for an optimal viewing experience, and to optimize the position of phone’s handset and keys. This new Aastra High Angle Stand provides a range of adjustable angles from 30 to 60 degrees, improving ergonomic reach when sitting at your desk and working with other applications, ultimately making the job easier and more efficient.
Summary of Key attributes:
* 4 different viewing angels are supported: approximately 30, 40, 50, and 60 degrees
* Compatible with most 6700 Series models (see below for details).
* Easy snap-on installation with wobble reduction mechanism
* Slip resistant rubber feet, which provides a secure grip on most desktop surfaces
* Provides quick and easy access to phone’s back panel connectors.
This stand is compatible with the following models:6739i , 6757i CT, 6757i, 6755i, 6753i, 6751i, 6725i. This stand is not compatible with Aastra 6730i or 6731i phones, and cannot be used in conjunction with phone which have Expansion Modules attached.
